中华卫生应急电子杂志 ›› 2025, Vol. 11 ›› Issue (02) : 116 -120. doi: 10.3877/cma.j.issn.2095-9133.2025.02.008

新技术新装备

用于ECMO设备的新型仿血流脉动辅助驱动装置的设计及应用
陈彬1, 张健峰1, 刘燕青2, 邓冬平3, 林孜1, 李传龙1,(), 姜文兵4,()
  1. 1. 325026 浙江温州,天津大学温州安全(应急)研究院
    2. 300072 天津,天津大学
    3. 430415 湖北武汉,武汉工程职业技术学院
    4. 325099 浙江温州,温州市中心医院
  • 收稿日期:2025-02-24 出版日期:2025-04-18
  • 通信作者: 李传龙, 姜文兵
  • 基金资助:
    温州市科研项目(ZY2023027)

Design and application of a new simulated blood flow pulsation assisted driving device for ECMO equipment

Bin Chen, Jianfeng Zhang, Yanqing Liu, Dongping Deng, Zi Lin, Chuanlong Li(), Wenbing Jiang()

  • Received:2025-02-24 Published:2025-04-18
  • Corresponding author: Chuanlong Li, Wenbing Jiang
引用本文:

陈彬, 张健峰, 刘燕青, 邓冬平, 林孜, 李传龙, 姜文兵. 用于ECMO设备的新型仿血流脉动辅助驱动装置的设计及应用[J/OL]. 中华卫生应急电子杂志, 2025, 11(02): 116-120.

Bin Chen, Jianfeng Zhang, Yanqing Liu, Dongping Deng, Zi Lin, Chuanlong Li, Wenbing Jiang. Design and application of a new simulated blood flow pulsation assisted driving device for ECMO equipment[J/OL]. Chinese Journal of Hygiene Rescue(Electronic Edition), 2025, 11(02): 116-120.

图1 一种新型仿血流脉动辅助驱动装置主要结构三维示意图 注:100为脉动加压舱,200为脉动调节器,300为气管
图2 脉动加压舱主要结构三维示意图 注:10为气管加压舱前段,12为半柔性血液球囊,13为加压舱底盖,14为单向阀

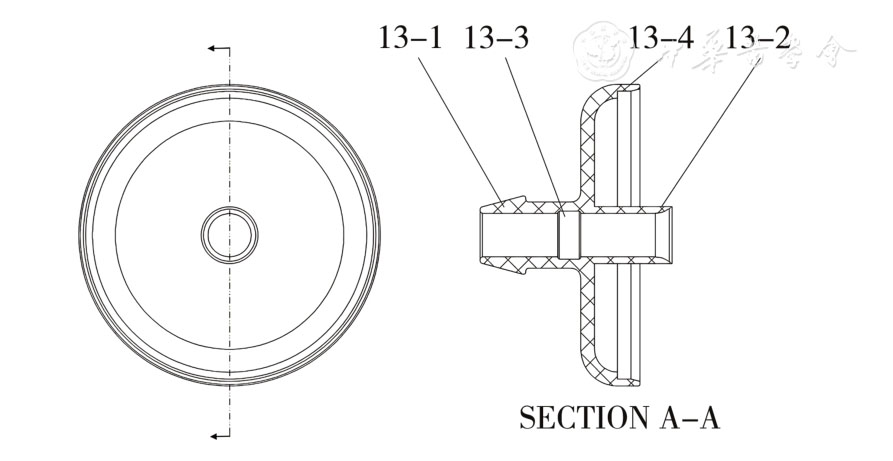

图3 加压舱底盖结构二维截面示意图 注:13-1为3/8宝塔接口,13-2为球囊接口,13-3为定位槽,13-4为配合槽
图4 加压舱前段二维截面示意图 注:10-1为3/8宝塔接头,10-2为球囊接口,10-3为加压舱主体,10-4为调压螺纹,10-5为弹簧定位柱,10-6为配合台阶,10-7为定位槽,10-8为调压指示表,10-9为血流指示箭头,10-10为禁止2次使用指示标识
图5 半柔性血液球囊结构示意图 注:12-1为管道接口,12-2为腔体,12-3为凹型表面
图6 加压舱装配二维截面示意图 注:10为加压舱前段,12为半柔性血液球囊,13为加压舱底盖,14为单向阀
图7 脉动调节器结构二维截面示意图 注:100为脉动加压舱,21为缓冲室,22为调压弹簧,23为密封柱
图8 脉动调节器结构二维截面示意图2 注:21-1为调压螺母,21-2为泄压孔(四个),21-3为密封段,21-4为过压孔,21-5为第三宝塔接口,21-6为防滑键,21-7为方向指示标识
图9 脉动流产生原理二维截面示意图 注:11为加压舱,12为半柔性血液球囊,21为缓冲室,22为调压弹簧,23为密封柱,100为脉动加压舱,200为脉动调节器,300为气管
图10 临床上体外循环系统示意图 注:1为仿血流脉动辅助驱动装置,2为体外氧合膜肺,3为病患,4为血路管道,5为ECMO主机,6为外接气源
